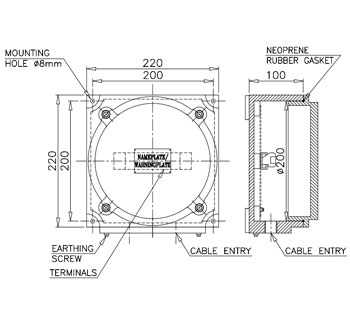

FLP-RH-1800 - 2 (DIA-200)

About
RATING UPTO 60Amp., UPTO 500V AC
CONSTRUCTION IN AL. ALLOY LM6
GAS GROUP IIC AS PER IS/IEC 60079-1:2014, Ex 'db'
ZONE ZONE 1&2
TEMP CLASS T6
DEG OF PROT IP:66 AS PER IS/IEC 60529-2001
CIMFR CERT NO IN/CIMFR/TR21/R/805 DTD. 21/06/202
PESO CERT NO A/P/HQ/MH/104/6892 (P516173) DTD. 21/09/2021
BIS CERT NO ENDORSEMENT NO. 132 DTD. 14/07/2021
EARTHING 1NO. INTERNAL & 2NOS. EXTERNAL
PAINT EPOXY POWDER COATED LIGHT GREY SHADE 631 OF IS:5.
TERMINALS TO BE SPECIFY, WITHOUT CABLE GLANDS & WITHOUT PLUG.
HARDWARE S.S-304 (ONLY NUTS & BOLTS.)
