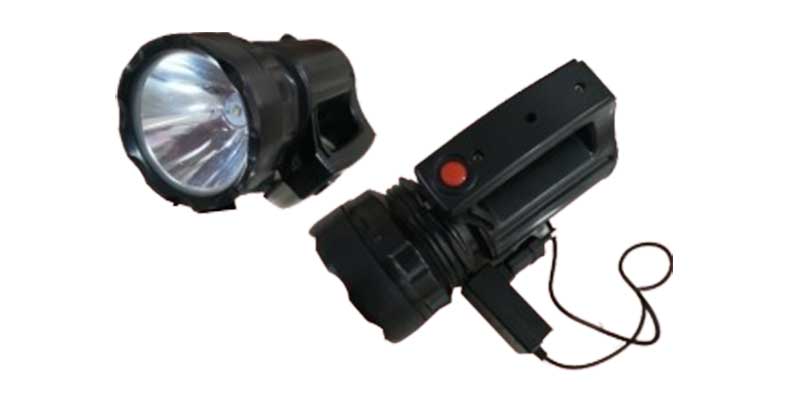

We have successfully made the FEPL make LED light Li-ion battery Safety Torch / Hand Lamp / Search light After continuous improvements, the newly designed Safety Torch has reached a very high level. We use the LED light especially designed for us with the luminous flex of 20,000 lux. The lighting degree is reaching more then 20,000 Lux (in distance of 1M) LED plastic / polycarbonate
Product Features:
Saftey : In a sealed battery case, the product has a short-circuit protection, Thermistor for Temperature Controland Resistable Fuse to wide damage / Blast of Battery. LED light head lamp and plastic / polycarbonate. The miner's lamp is reasonable tool for the coal miner's.
Reliability:The tough housing, the optimized structure design, the solid LED light that uses high efficient IC drivers, make the product durable and strong. The lamp is capable to endure at strong power attacked, the perfect of protection for Li-ion battery over charge/discharge design strengthens the reliability of the lamp. The Safety tourch / Hand Lamp / Search Light is very suitable to work under bad environment of the coal mine.
Portability:Small in size, light in weight, portable to carry, free of maintenance Simple charging, easy usage. Weight of total light with battery is 600gm.
Efficiency:The LED lamp is very bright of luminous flex 20, 000 lux. The minimum luminous intensity is 20,000 Lux (in distance of 1m). This intensity is maintained from the beginning of the shift to the end of the shift. It can last for 9 hours of continues use. It has a life of 800 cycles.
FEATURES | SPECIFICATION |
Rated capacity | 5.4 Ah up to 11.6 Ah |
Rated voltage | 3.7V |
Continuous discharging time | 8 to 10 hrs |
Main light LED working voltage | 4.2 V |
Main light LED working current | 1.7 A (Opp.) |
Main light power | 5W |
Main light luminous flex more than | 20,000 Lux |
Lamp lighting degree Initial Lighting degree | 20,000 Lux (distance in 1 m) |
Lamp lighting degree lighting degree in second mode | 14,000 Lux (distance in 1 m) |
Low light mode | > 5000 Lux |
Short circuit protect time | <15ms |
Usage duration of battery (recharges) | 800 to 1200 cycles) |
Charging time | 6h-10h |
Weight | 600 gm. |
